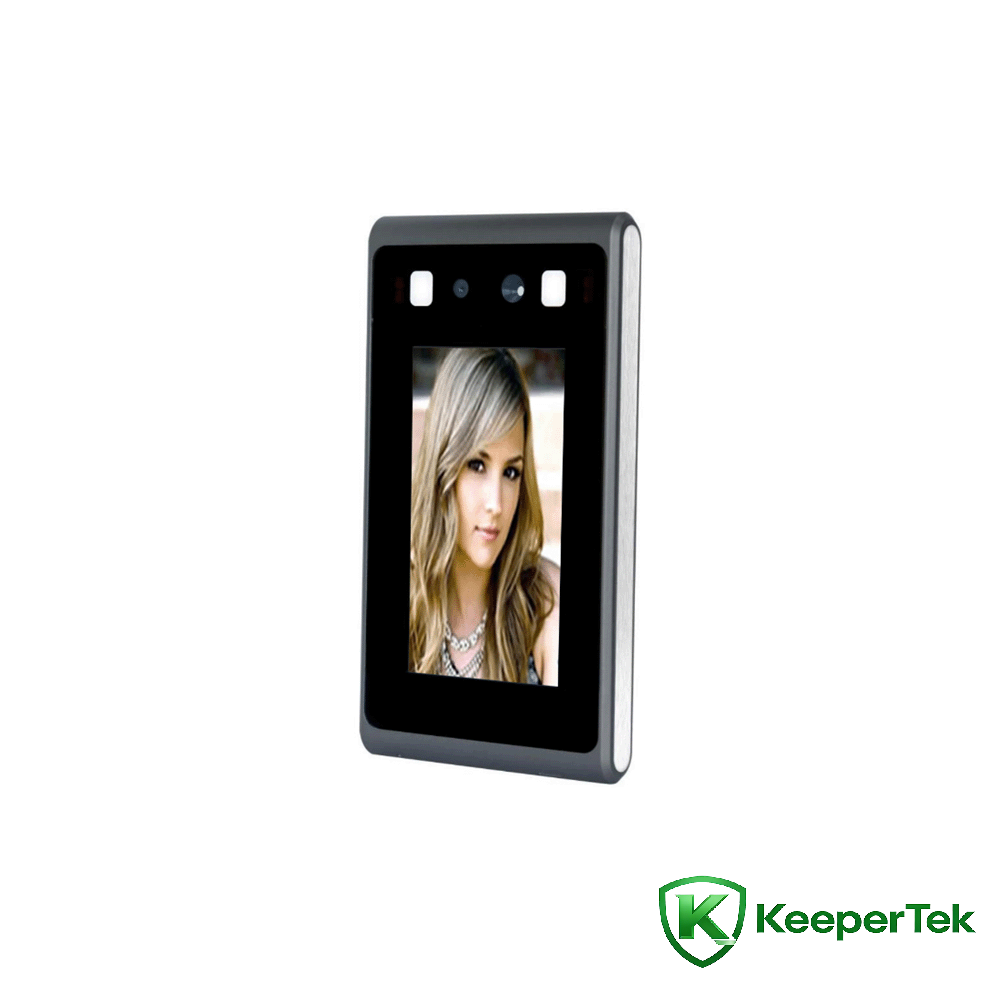

Facie agnitio machina

4.3digitis populus Face identify penicillo Card integrated machina KT- FR002

Technical parametri

Processor: Dual-Core ARM Cortex-A7, @1.0GHz

Systema operandi: Linux operating ratio

Repono: Support TF card repono (libitum)

Camera: Binocular, 2.1 decies centena efficax elementa, 1920*1080

Imaginatio fabrica: 1/2.8" Progressive Scan CMOS

Lens: 4.5mm

Chartae volubiles moduli: optionales, 13.56MHz, ID card Vide numerum, Mifare, NFC

Wifi modulus: IEEE 802.11b/g/n vexillum, subsidia cohortis frequentiae 2.4GHz, celeritas range 1Mbps-150Mbps

Tange velum: firmamentum, capacitivum multi- tactus velamentum

Loquens: vexillum, vox contenta playback potest nativus

Recognitio altitudo: 1.2~ 2.2 metra, angulus adjustabilis

Recognitio procul: 0.3 ~ 1.5 metra

Facie angulus: 30 gradus sinistri et recti, 30 gradus sursum et deorsum

Recognitio tempus: minus quam 0.5 seconds

Repono facultatem: 60,000 snapshot records

Facie capacitatis: 20000

Potentia input: DC12V/2A

Retiacula interface: 1 RJ45 10M/100M adaptivum Aer port

Wiegand interface: 1 Wiegand interface output, 1 Wiegand interface input

Terrorem interface: 1 ignis terror input, 1 terror output

Ostium sensorem interface: 1 ostium sensorem interface initus

Ostium ostium interface: 1 ostium ostium interface initus

Doorbell interface: I doorbell interface output

Porta cincinno interface: 1 ostium cincinno interface output

Communicatio interface: 1 RS485 communicatio interface

Camera: camera Binocularis, lens vitreum totum, lumen visibile et prope-infractum, corpus vivum deprehensio sustinet.

Efficax elementa: 2.1 decies centena elementa efficax, 1920*1080

Minimum: color 0.01Lux @F1.2 (ICR); nigrum et album 0.001Lux @ F1.2 (ICR)

Ratio vocis signum: ≥50db (AGC OFF)

Screen resolution: 480*272

Temperatus operandi: -20℃ - +55℃

Operatio humiditas: 0~90% humiditas relativa, nulla condensatio

Virtus armorum: 10W (MAX)

Sal imbre gradu: Rp6 vel supra

Antistatic: contactus ±4KV, aer ±8KV

Virtus supple: DC12V/2A

Praesidium campester: IP42

Screen specifications: 4.3 inch capacitive multi tactus velum

Apparatus amplitudo: 160 (longitudo) * 88 (latitudo) * 17 (crassitudo) mm*

Features

Support binocular live corporis deprehensio

Sustinet faciem semita et nuditate hominum movens in fortis backlight ambitibus

Unicum faciei agnitio algorithmus, facies accurate agnoscit, facies agnitionis temporis minus est quam 0.5s

Inaedificata domestica CPU

Ratio operandi LINUX utens, ratio stabilis est

Medium cursus tempus inter defectis MTBF＞50000h

Sustinet usque ad 20000+ faciem collationis librariorum et 60,000 recognitionum monumentorum

Temperatus operandi: -20℃-55℃

Indoor IP42 IMPERVIUS et dustproof

Support anti-tatione terror

Tortor ligula, initus audio et speaker output audio

Ferramenta interfaces divites (I/O, WG26, WG34, RJ45, ostium sensoris, tintinabulum, ostium ostium, terror, RS485)

4.3 inch capacitivum multi- tactus velum, nulla imago linis aut morae
