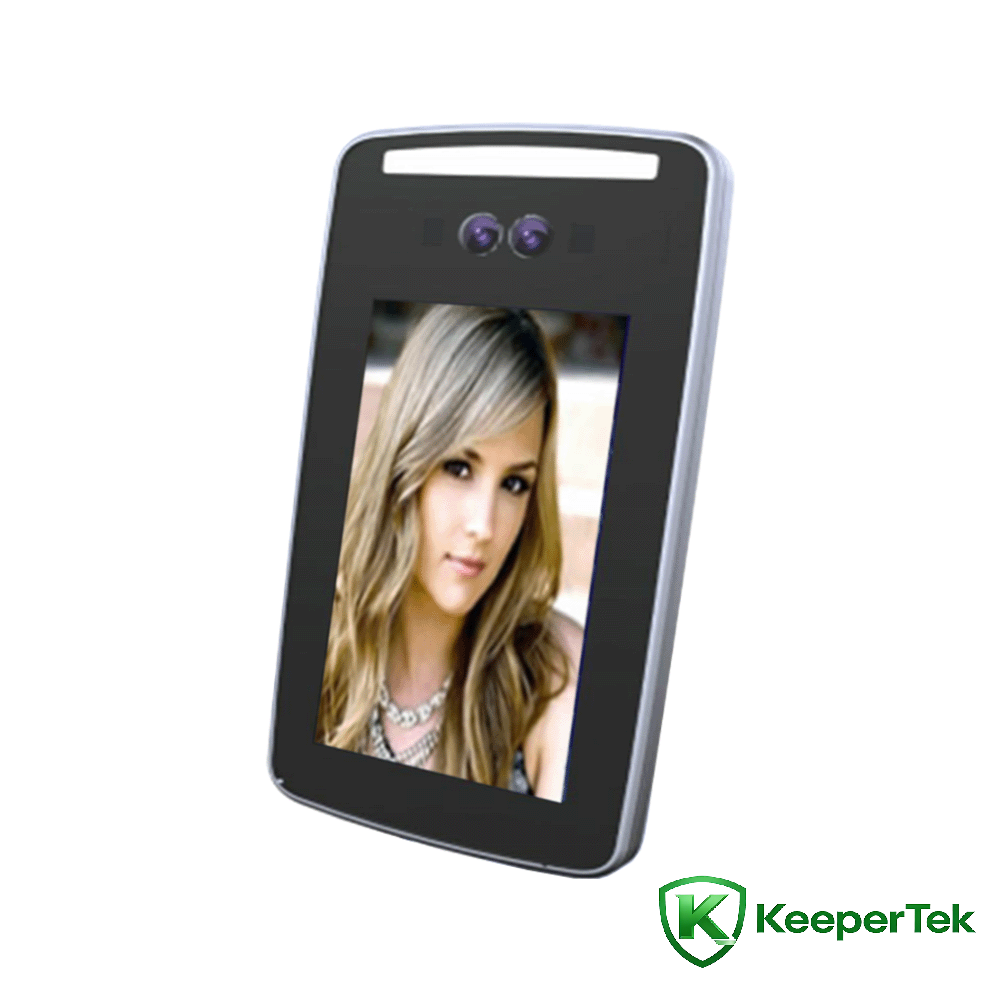

Facie agnitio machina

7digitis populus Faciem recognitionem omnes in unum machina KT- FR005

Technical parametri

Processus: processus dual-core processus + 1G memoria + 16G EMMC

Systema operandi: Linux operating ratio

Repono: Support TF card storage

Camera: Binocular, 2.1 decies centena efficax elementa, 1920*1080

Imaginatio fabrica: 1/2.8" Progressive Scan CMOS

Lens: 6mm

Loquens: vexillum, vox contenta playback potest nativus

Recognitio altitudo: 1.2~ 2.2 metra, angulus adjustabilis

Recognitio distantia: 0.5~ 1.5 metra, variae secundum lentis

Facie angulus: 30 gradus sinistri et recti, 30 gradus sursum et deorsum

Recognitio tempus: minus quam 0.5 seconds

Facie capacitatis: 20000

Repono facultatem: 60,000 snapshot records

Commutatio output: 1 commutatione output, alia GPIO portus nativus esse potest

Retiacula interface: 1 RJ45 10M/100M adaptive Ethernet port, customizable Gigabit network port

Wiegand interface: 1 Wiegand interface input, 1 Wiegand interface output

USB interface: I USB interface ut machinam

Communicatio interface: 1 RS485 interface

Camera: Binocular camera, lumen visibile et prope infrarubrum, corpus vivum deprehensio sustinet

Efficax elementa: 2.1 decies centena elementa efficax, 1920*1080

Minimum: color 0.01Lux @F1.2 (ICR); nigrum et album 0.001Lux @ F1.2 (ICR)

Ratio vocis signum: ≥50db (AGC OFF)

Lata dynamica pars: 100db, ISP algorithmus partialis expositio faciei

Video descriptam: H.265 Praecipuam Profile descriptam/H.264 BP/MP/HP descriptam/MJPEG descriptam

Configuratione paginae interreti: subnixus

Remotis upgrade fabrica: suscepit

Modum instruere: subsidia publica retis et LAN usu

Temperatus operandi: -30℃ - +60℃

Operatio humiditas: 0~90% humiditas relativa, nulla condensatio

Sal imbre gradu: Rp6 vel supra

Antistatic: contactus ±6KV, aer ±8KV

Virtus supple: DC12V/2A

Anti- luxuria gradu: IK06

Praesidium campester: IP66

Fabrica potentia: 14.4W(MAX)

Apparatus amplitudo: 128 (latitudo) * 28 (crassitudo) * 240 (altitude) mm*

Features

Support binocular live corporis deprehensio

Sustinet faciem semita et nuditate hominum movens in fortis backlight ambitibus

Unicum faciei agnitio algorithmus, facies accurate agnoscit, facies agnitionis temporis minus est quam 0.5s

 Inaedificata domestica CPU

Ratio operandi LINUX utens, ratio stabilis est

Medium cursus tempus inter defectis MTBF＞50000h

Sustinet ad 20000 faciem collationis librariorum et 60,000 recognitionum monumentorum

Protocolla interfaciei divites, TCP/IP, UDP, HTTP, DNS, DHCP, MQTT protocolla sub Windows/Linux et alia suggesta · Temperatus operandi: -30℃-60℃

IP66 IMPERVIUS et dustproof

 Inaedificata photosensitive sensorem sponte accommodat imple lucis intensionem

Ferramenta interfaces divites (I/O, WG26, WG34, RJ45, RS485)

7-inch IPS plenus-videns HD ostentationem, nulla inlinitur aut mora in imaginibus
