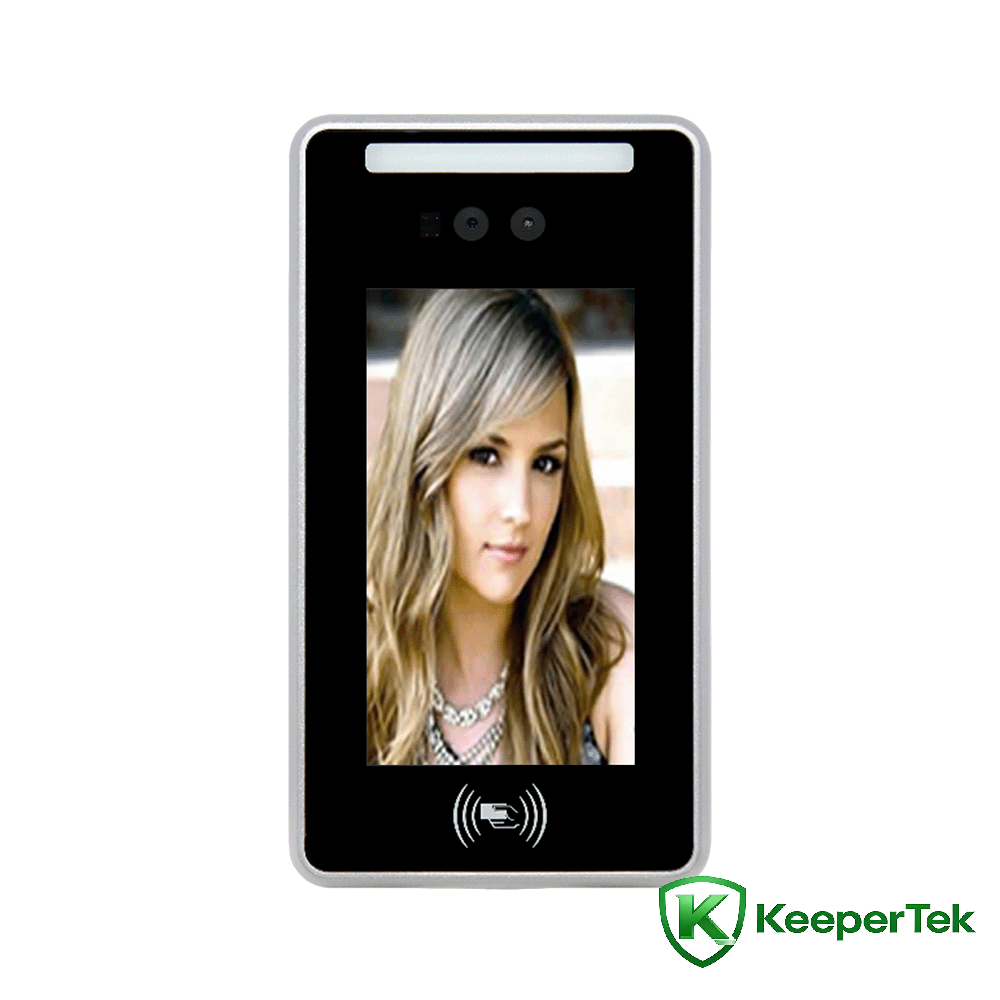

Facie agnitio machina

7digitis populus Faciem recognitionem card swiping omnes in unum machina KT- FR007

Technical parametri

Processor: Dual-Core ARM Cortex-A7, @1.0GHz

Systema operandi: Linux operating ratio

Repono: 8GB EMMC

Camera: Binocular, 2.1 decies centena efficax elementa, 1920*1080

Imaginatio fabrica: 1/2.8" Progressive Scan CMOS

Lens: 6mm

Chartae volubiles moduli: 13.56MHz, subsidia Mifare S50, S70 schedulae ultralinguae, chartae NTAG, DESFire D21, D41, D81, non-contactus CPU chartarum

WIFI modulus: IEEE 802.11b/g/n vexillum, subsidia cohortis frequentiae 2.4GHz, celeritas range 1Mbps-150Mbps

Modulus Bluetooth: 8DPSK, π/4DQPSK, GFSK, celeritas range 1Mbps-2, 3Mbps

Loquens: vexillum, vox contenta playback potest nativus

Recognitio altitudo: 1.2~ 2.2 metra, angulus adjustabilis

Recognitio distantia: 0.5~ 1.5 metra, variae secundum lentis

Facie angulus: 30 gradus sinistri et recti, 30 gradus sursum et deorsum

Recognitio tempus, minus quam 0.5 seconds

Repono facultatem: 60,000 snapshot records

Facie capacitatis: 20000

Card genera quae svelli possunt: ​​13.56MHz, ID card numerus serial, Mifare, NFC (libitum in ID card lector constructum)

Commutatio output: 1 commutatione output, alia GPIO portus nativus esse potest

USB interface: I USB interface ut machinam

Retiacula interface: 1 RJ45 10M/100M adaptive Ethernet port, customizable Gigabit network port

Wiegand interface: 1 Wiegand interface output, 1 Wiegand interface input

Communicatio interface: 1 RS485 interface

Camera: Binocular camera, lumen visibile et prope infrarubrum, corpus vivum deprehensio sustinet

Efficax elementa: 2.1 decies centena elementa efficax, 1920*1080

Minimum: color 0.01Lux @F1.2 (ICR); nigrum et album 0.001Lux @ F1.2 (ICR)

Ratio vocis signum: ≥50db (AGC OFF)

Temperatus operandi: -30℃ - +60℃

Operatio humiditas: 0~90% humiditas relativa, nulla condensatio

Virtus armorum: 10W(MAX)

Sal imbre gradu: Rp6 vel supra

Antistatic: contactus ±6KV, aer ±8KV

Virtus supple: DC12V/2A

Anti- luxuria gradu: IK06

Praesidium campester: IP66

Screen specifications: 7-inch summus definitione IPS screen

Equipment size: 252 (longitudo) * 136 (latitudo) * 26 (crassitudo) mm*

Features

Support binocular live corporis deprehensio

Sustinet faciem semita et nuditate hominum movens in fortis backlight ambitibus

Unicum faciei agnitio algorithmus, facies accurate agnoscit, facies agnitionis temporis minus est quam 0.5s

Inaedificata domestica CPU

Ratio operandi LINUX utens, ratio stabilis est

Medium cursus tempus inter defectis MTBF＞50000h

Sustinet usque ad 20000+ faciem collationis librariorum et 60,000 recognitionum monumentorum

Protocolla interfaciei divites, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocolla sub Windows/Linux et alia suggesta

Temperatus operandi: -30℃-60℃

IP66 IMPERVIUS et dustproof

Hospes constructum-in IC card swiping modulus

Ferramenta interfaces divites (I/O, WG26, WG34, RJ45, USB, RS485)

7-inch IPS plenus-videns HD ostentationem, nulla inlinitur aut mora in imaginibus
