Facie agnitio machina

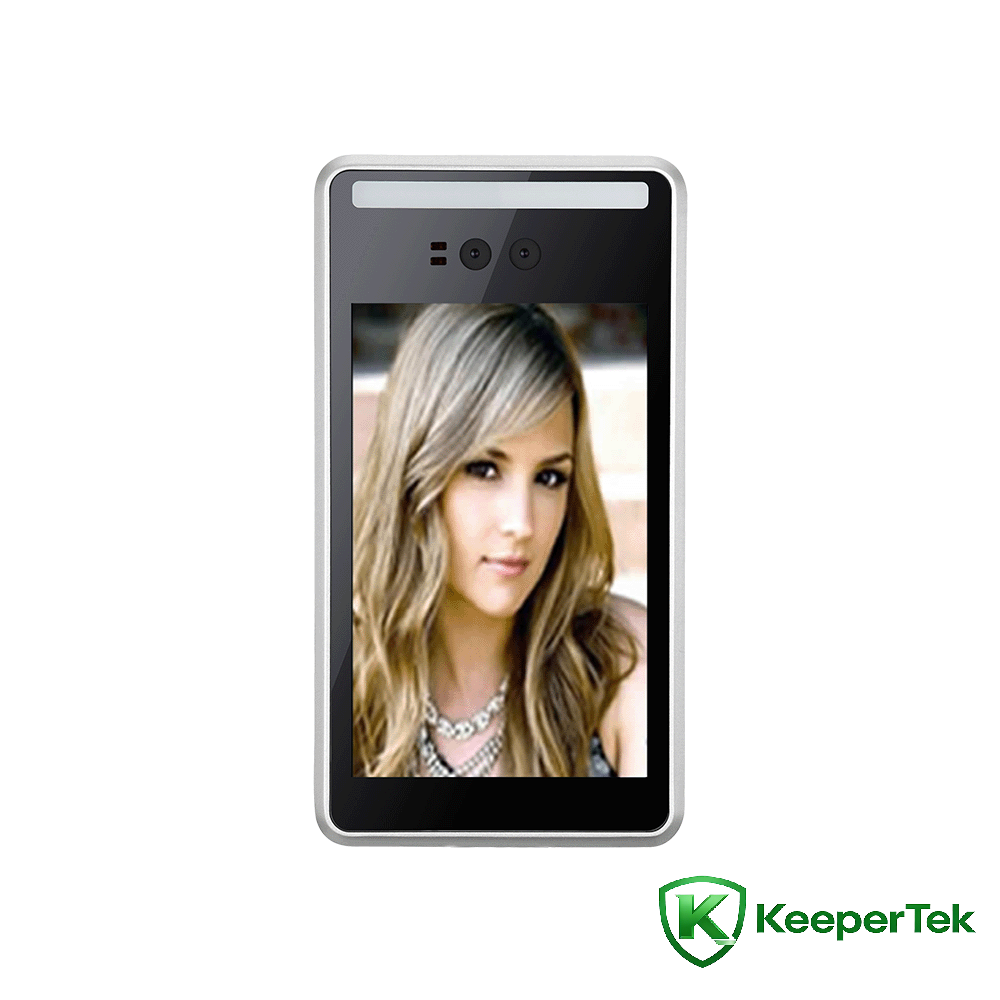

8pollicis faciem Recognitio omnia in unum machina KT- FR012

Technical parametri

Processor: Dual-core ARM Cortex-A7

Systema operandi: Linux Embedded operating ratio

Repono: 1GB RAM + 8GB eMMC

Angulus Visus: Vertical Viewing angulus: 30°； Horizontalis intuitus angulus: 30°

Imaginatio fabrica: 1/2.8" Progressive Scan CMOS

Lens: 6mm

Chartae volubiles moduli (libitum): 13.56MHz, subsidia Mifare S50, S70 chartarum, schedulae ultralingae, NTAG schedulae, DESFire D21, D41, D81, non-contactus CPU chartarum

Modulus 4G (libitum): subsidia LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, ORA, GPRS et aliis signis retis, cum maximo downlink rate de 160Mbps et maximum uplink rate of 60Mbps

Wifi modulus (libitum): 2.4GHz cohortis frequentiae, IEEE802 b/g/n protocol； 5GHz frequentia manus, IEEE802 a/n/ac protocol

Loquens: vexillum, vox contenta playback potest nativus

Recognitio altitudo: 1.2~ 2.2 metra, angulus adjustabilis

Recognitio distantia: 0.5~ 1.5 metra, variae secundum lentis

Recognitio tempus, minus quam 0,3 seconds

Recordationis facultatem: 80,000 records snapshot

Facie facultatem: 30,000

Splendorem tegumentum: ≥400 cd/m2

Retiacula interface: 1 RJ45 10M/100M adaptive Ethernet port, customizable Gigabit network port

Wiegand interface: 1 Wiegand interface output, 1 Wiegand interface input

Ostium sensorem interface: 1 channel portae sensorem interface

Ostium ostium interface: 1 via ostium interface

Porta cincinno interface: I-via ostium cincinno interface

Communicatio interface: 1 canalis 485 communicatio interface

Camera: Binocular camera, lumen visibile et prope infrarubrum, corpus vivum deprehensio sustinet

Efficax elementa: 2.1 decies centena elementa efficax, 1920*1080

Minimum: color 0.01Lux @F1.2 (ICR); nigrum et album 0.001Lux @ F1.2 (ICR)

Ratio vocis signum: ≥50db (AGC OFF)

Lata dynamica pars: 120db, ISP algorithmus expositio partialis faciei

Video descriptam: H.265 Praecipuam Profile descriptam/H.264 BP/MP/HP descriptam/MJPEG descriptam

Temperatus operandi: -30℃ - +60℃

Operatio humiditas: 0~90% humiditas relativa, nulla condensatio

Sal imbre gradu: Rp6 vel supra

Antistatic: contactus ±6KV, aer ±8KV

Virtus supple: DC12V/2A

Anti- luxuria gradu: IK06

Praesidium campester: IP66

Virtus armorum: 20W(MAX)

Equipment size: 252 (longitudo) * 136 (latitudo) * 26 (crassitudo) mm*

Features

Support binocular live corporis deprehensio

Unique viva facies agnitionis algorithmi, facies accurate agnoscit, facies agnitionis temporis minus est quam 0.3s

Medium cursus tempus inter defectis MTBF＞50000H

Sustinet faciem semita et nuditate hominum movens in fortis backlight ambitibus

Protocolla interface dives, SDK et HTTP protocolla sustentans in multis suggestis ut Linux/Windows

Utens ratio operandi Linux, ratio stabilitatis melior est

Sustinet 30,000+ faciem collationis bibliothecarum ac 80,000 recognitionum monumentorum

Sustentationes TF card expansionis repositae, picturae continue per annum 1 condi possunt, videos continenter hebdomadam vel plures conservari possunt.

Temperatus operandi: -30℃- +60℃

Velit IP66 IMPERVIUS et dustproof

Cogitatus subsidia login loci ad machinam administrandam, interrogationem et fabricam conformat.

Ferramenta interfaces divites (I/O, WG26, WG34, RJ45, ostium sensorem, ostium ostium, ostium clausum, RS485)

8-inch IPS plenus-videns HD ostentationem, nulla inlinitur aut mora in imaginibus

Lucrum automaticum et latis statera alba sinit verum colorem imaginis naturaliter restitui

In lumine nigro inaedificato gradu sensori dicato ad annotata video, accuratior cognitio humilis-lucis

3D sonum reductionis et penetrationis technologiae nebulae efficit magnas imagines sub humili lumine clarius et accuratius

Support parte interclusio ex area video

Support ROI modum translitterandi

Statera alba automatic, in promptu manuum album statera

Support 2D sonitus reductionis et 3D sonitus reductionis

Sustinet video splendorem, antithesin, colorem, satietatem et gamma commensurationem

Auxilio ponere maximam ipso nulla tempore

Sustinet faciem intelligentem expositio et facies amplificationem intelligentes occasus
