Licentia laminae recognitionis ratio raedam

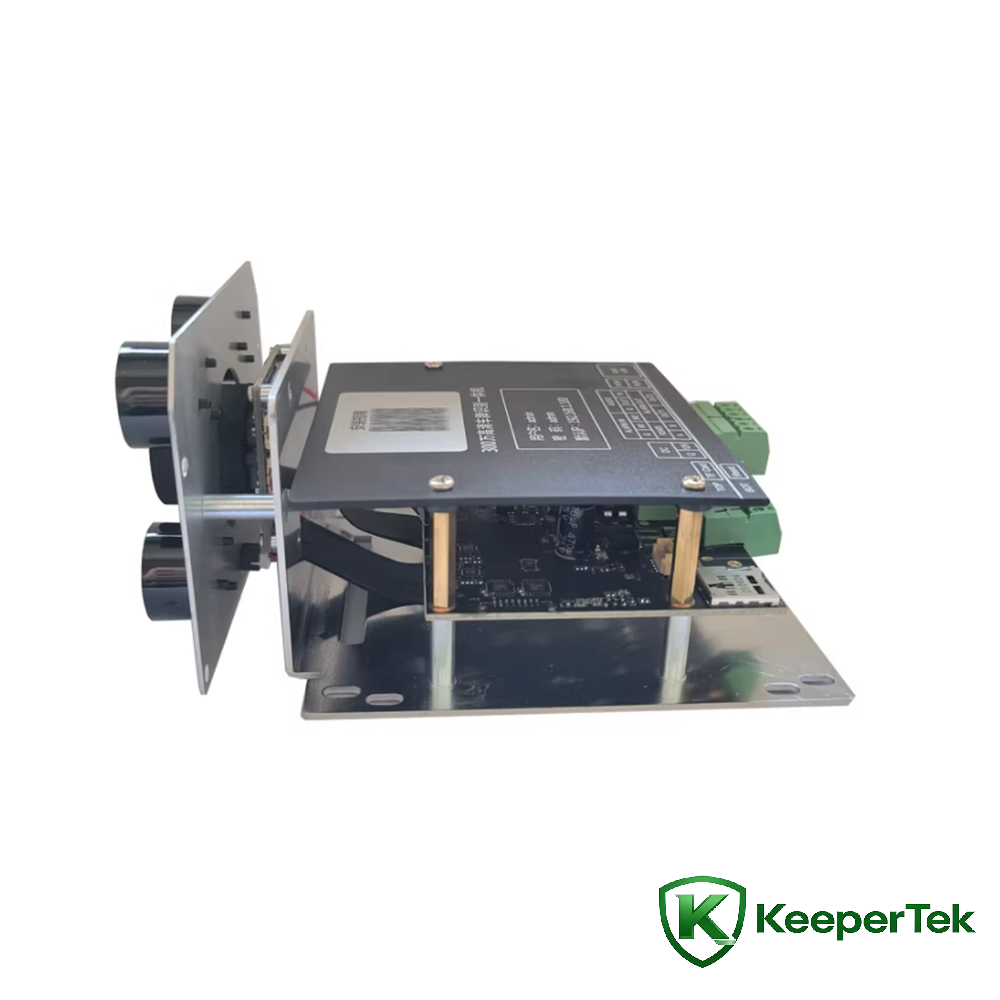

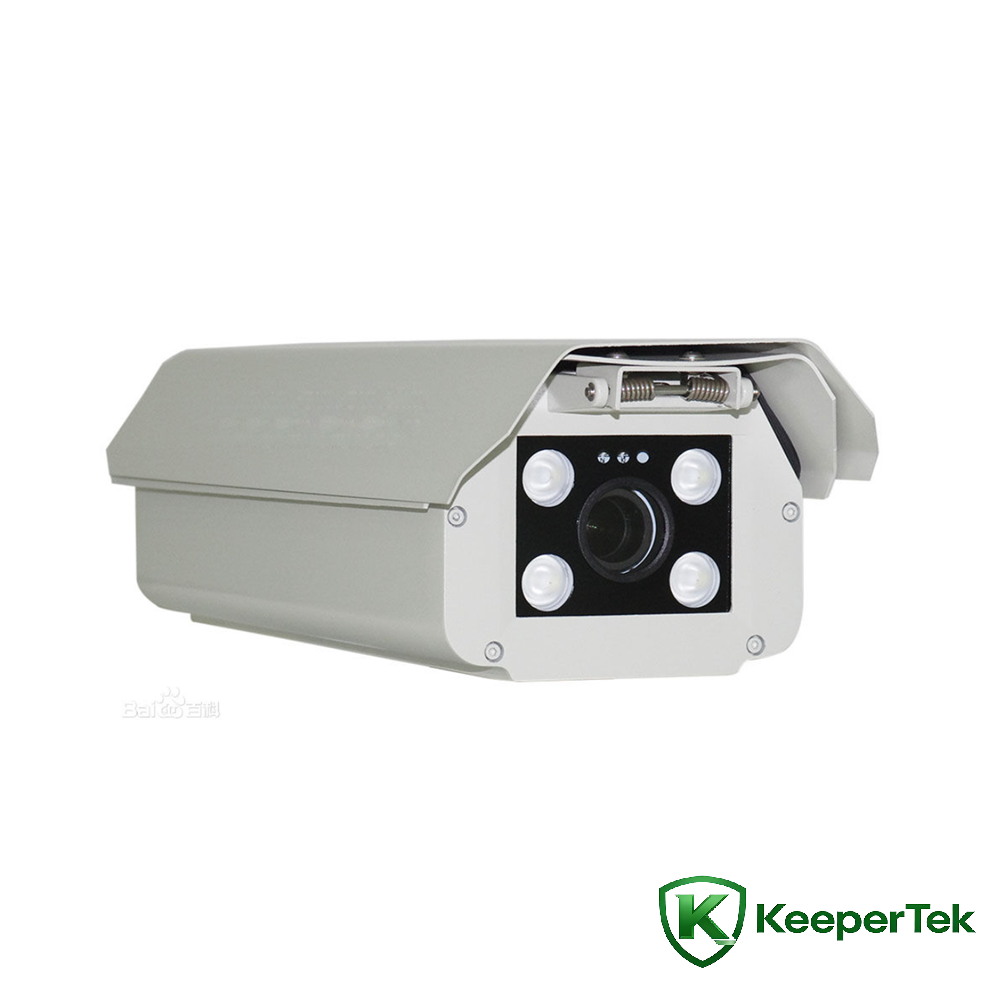

licentia laminam recognitionis camera KT-LPR001

Technical parametri

Capere rate: ≥99.9%

Recognitio rate: ≥99.8%

Apta celeritas: 0-40 km/h

Licentia laminae agnitionis lineamenta: licentia laminae numerus, color, latitudo, fiducia

Licentia laminae anti-simulans: sustinet abnormes licentiam lamellae (photographiae et imprimendi cum telephono mobili) terrores, accurate rate 9≥5%

Unlicensed vehiculum CT: subsidia inlicitae video vehiculum excitato, cum subtiliter XCV%

Car exemplar recognitionis: subsidium 7 car exemplar recognitionis (car, SUV, MPV, minibus, magna bus, minivan, magnas salsissimus)

License plate whitelist: Supports accurate et intelligentes quamquam matching of whitelist license plate rules

Calibration intelligentes: subsidia licentiam laminam numero calibratiis intelligentes, licentia laminae genus et color verius aut in wildcard modo

Configuratio fundamentalis: intelligentes optimized algorithmus obscuratio, claritas/contra/saturatio/claritas/imago flip/expositio temporis, etc. independenter constitui possunt.

Compressionem vide vexillum: H.264/H.265

Vide resolutio: 640* 360, 704* 576, 1280* 720, 1920* 1080, 2960* 1664.

Cogo output frenum rate: 512Kbps~5000Kbps

Frame rate: 1~25 tabulae, defaltam 25 tabulas

Protocollum Communicationis: SDK, ONVIF, HTTP, MQTT, RTSP, TCP/IP, UDP, RS485, NTP

FTP imagines imposuisti: Subnixus, upload imagines captas servo per FTP

VPN Virtual Private Network: Sustinet erectionem virtualis network privatam per OpenVPN

HTTP dis: Supported, supports uploading recognition results and offline retransmission

MQTT dis: Subnixus, subsidia recognitionis impositionis proventuum et offline retransmissionis

Dynamic domain name: Supports docking with 3322 dynamic domain name service

UPNP portum mapping: firmamentum, sponte map HTTP/RSTP communicationis portum

Offline networking: nullus hospes computatrum vel ministrator requiritur, et network perficiendi automatice inter cameras impletur

Raedam sors procuratio: sustentat instaurationem multorum raedam sortium et scaenarum administratione substructio plurium camerarum

Whitelist: Cooperare consilia ad vehiculum hierarchicum administratione

Vinculum procuratio: 3 camerae auxiliares (including licentiam plate cameras et lane annotata cameras) addi possunt eidem principali fabrica

Protocollum procuratio: PC procuratio mobilis, instrumenta procuratio PC, ornamentum evolutionis SDK, HTTP dis

Clouds procuratio: Remote unam cameram administrare, centraliter multas cameras per rationes administrare et nubem SDK suggestum procurationis evolutionis sustinere.

Sensor: 5MP princeps effectus CIS

Resolutio: 2960(H) x 1664(V) ;

Humilis illuminatio: color 0.1LUX (lux alba)

Electronic Lorem: 0-1ms vel nativus

Lens: Standard 6mm fixum focus lens

Interface: M12

Imago occasus: splendor, antithesis, satietatem, imago flip, tempus detectio, etc.

Sonitus reductionis: subsidia 2D/3D sonitus reductionis

Lata dynamica range: subnixus

Retiacula interface: 1 canalis 10/100Mbps adaptiva RJ45 port

IO output: 2 canales

IO input: 2 canales

RS485: 1 way

TF card socors: 1 TF card socors, sustinens maximam facultatem 256G

Reset puga pyga: I channel Reddere puga

Systema lucis: Status lux machinae micat ad indicandum systema normaliter laborat; si semper in vel off, eam incipit vel abnormis esse indicat.

Temperatus: operating temperatus: -30℃~70℃

Static electricitas: contactus 6KV, aer 8KV；

Surge: 10/70 modus communis 4KV, modus differentialis 2KV 8/20 modus communis 2KV, modus differentialis 2KV

Anti-vibratio: vexillum nationalis

Virtus copia: 12V DC

Virtus consummatio: potentia consummatio ≤ 3W

Praesidium: IP65 pro tota machina, modulus non est IMPERVIUS

Dimensiones altiore: apparatus totus: 440mm (L) * 144mm (W) * 103mm (H), modulus: 440mm (L) * 144mm (W) * 103mm (H)
