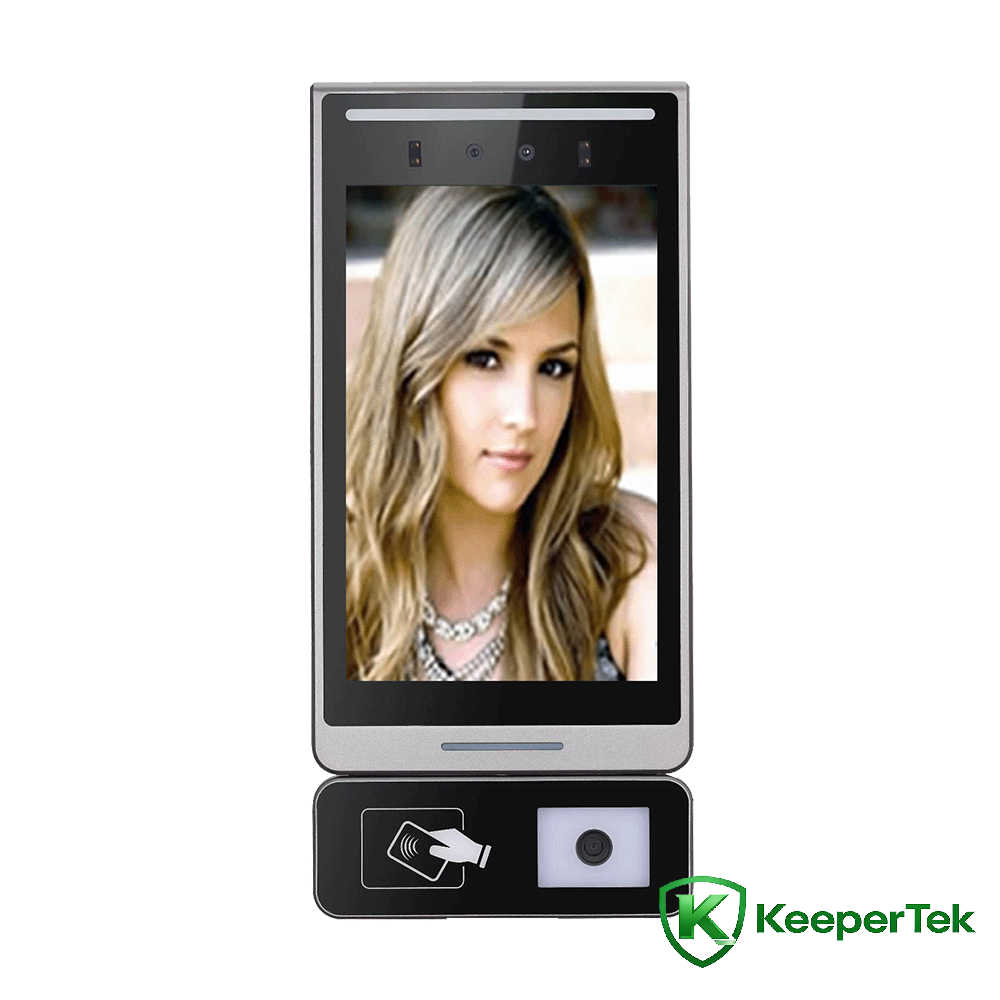

Facie agnitio machina

8Pollicis persona Face identify duos dumtaxat Omnia in unum codice swiping machina KT- FR015

Technical parametri

Processor: Dual-core ARM Cortex-A7 et RISC-V MCU

Systema operandi: Linux operating ratio

Repono: 1GB RAM + 8GB eMMC

Camera: Binocular, 2.1 decies centena efficax elementa, 1920*1080

Imaginatio fabrica: 1/2.8" Progressive Scan CMOS

Lens: 4.5mm arx longitudinis

Card plicandi moduli: mifare unum (M1), S50, S70, NTAG2xx et alia 13.56MHz schedulae frequentiae cohortium TK, EM et aliae series 125KHz schedulae frequentiae (auxiliatae IC/ID)

QR code modulus: 640 (horizontalis)

Loquens: Voice content playback potest nativus

Recognitio altitudo: 1.2~ 2.3 metra, angulus Novifacta

Recognitio distantia: 0.5~ 1.5 metra, variae secundum lentis

Facie angulus: 30 gradus sinistri et recti, 30 gradus sursum et deorsum

Recognitio tempus, minus quam 0,3 seconds

Lepidium sativum record facultatem: 69000

Facie capacitatis: 24000

Potentia input: DC12V/2A

Retiacula interface: 1 RJ45 10M/100M adaptivum Aer port

Wiegand interface: 1 Wiegand interface output, 1 Wiegand interface input

Switching value: I switching value output

Communicatio interface: 1 RS485 communicatio interface

USB interface: I USB interface

Camera: camera binocularis, lens nativus, lumen visibile et prope-infractum, corpus vivum deprehensio sustinet

Efficax elementa: 2.1 decies centena elementa efficax, 1920*1080

Ratio vocis signum: ≥50db (AGC OFF)

Lata dynamica pars: 120db, ISP algorithmus expositio partialis faciei

Video descriptam: H.265 Praecipuam Profile descriptam/H.264 BP/MP/HP descriptam/MJPEG descriptam

Temperatus operandi: -20℃-60℃

Operatio humiditas: 0~90% humiditas relativa, nulla condensatio

Virtus armorum: 20W(MAX)

Sal imbre level: Rp6 level

ESD: contactus ±6KV, aer ±8KV

Virtus supple: DC12V/2A

Praesidium campester: IP66

Screen specifications: 8-inch high-definition IPS screen, resolution 1280*800

Equipment size: 295.76 (longitudo) * 140.2 (latitudo) * 24 (crassitudo) mm

Features

Support binocular live corporis deprehensio

Sustinet faciem semita et nuditate hominum movens in fortis backlight ambitibus

Unicum faciei agnitio algorithmus, facies accurate agnoscit, facies agnitionis temporis minus est quam 0.3s

Inaedificata domestica CPU

Ratio operandi LINUX utens, ratio stabilis est

Medium cursus tempus inter defectis MTBF＞50000h

Sustinet usque ad 24,000 faciem comparationis librariorum et 69,000 recognitionis monumentorum

Protocolla interfaciei divites, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocolla sub Windows/Linux et alia suggesta

Temperatus operandi: -20℃-60℃

Corpus ultra-tenue, exquisita industrialis intentio

Ferramenta interfaces divites (I/O, USB2.0, WG26, WG34, RJ45, RS485)

8-inch IPS plenus-videns HD ostentationem, nulla inlinitur aut mora in imaginibus

Lucrum automaticum et latis statera alba sinit verum colorem imaginis naturaliter restitui

3D sonum reductionis et penetrationis technologiae nebulae efficit magnas imagines sub humili lumine clarius et accuratius

Support parte interclusio ex area video

Support ROI modum translitterandi

Statera alba automatic, in promptu manuum album statera

Support 2D sonitus reductionis et 3D sonitus reductionis

Sustinet video splendorem, antithesin, colorem, satietatem et gamma commensurationem
