Facie agnitio machina

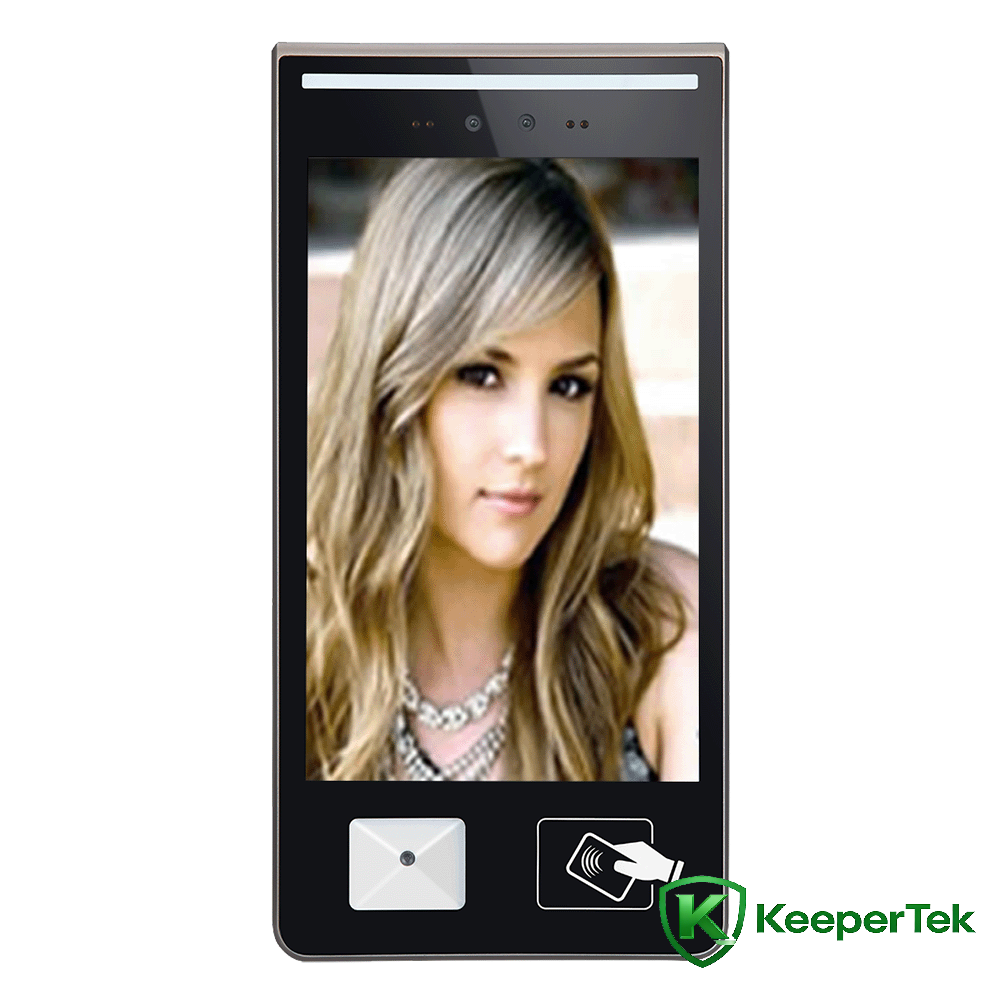

10.1Inch homo Face identify duos dumtaxat Omnia in uno codice swiping et card vendo machinam KT- FR016

Technical parametri

Processor: Processus domesticus dual-core processus + 1G memoria + 8G EMMC

Systema operandi: Linux operating ratio

Repono: Support TF card repono (libitum)

Camera: Binocular, 2.1 decies centena efficax elementa, 1920*1080

Imaginatio fabrica: 1/2.8" Progressive Scan CMOS

Lens: 4.5mm arx longitudinis

Card plicandi moduli: mifare unum (M1), S50, S70, NTAG2xx et alia 13.56MHz schedulae frequentiae cohortium TK, EM et aliae series 125KHz schedulae frequentiae (auxiliatae IC/ID)

QR code lectionis moduli: subsidia QR codicis, PDF417, ECC200, EAN13, Code128 et aliorum QR codes et unus-codices dimensivus

Tactus tegumentum moduli: capacitivum multi tactus velum

Loquens: Voice content playback potest nativus

Recognitio altitudo: 1.2~ 2.3 metra, angulus Novifacta

Recognitio procul: 0.5~ 2.5 metra

Facie angulus: 30 gradus sinistri et recti, 30 gradus sursum et deorsum

Recognitio tempus: minus quam 0.5 seconds

Repono facultatem: 80,000 snapshot records

Facie capacitatis: 30,000

Potentia input: DC12V/3A

Retiacula interface: 1 RJ45 10M/100M adaptive Ethernet port, customizable Gigabit network port

Wiegand interface: 1 Wiegand interface output, 1 Wiegand interface input

Ostium sensorem interface: 1 ostium sensorem interface initus

Ostium ostium interface: 1 ostium ostium interface initus

GPIO interface: 1 GPIO interface configurable

Porta cincinno interface: 1 ostium cincinno interface output

Communicatio interface: 1 RS485 communicatio interface

Camera: camera Binocularis, lens vitreum totum, lumen visibile et prope-infractum, corpus vivum deprehensio sustinet.

Efficax elementa: 2.1 decies centena elementa efficax, 1920*1080

Minimum: color 0.01Lux @F1.2 (ICR); nigrum et album 0.001Lux @ F1.2 (ICR)

Ratio vocis signum: ≥50db (AGC OFF)

Lata dynamica pars: 120db, ISP algorithmus expositio partialis faciei

Video descriptam: H.265 Praecipuam Profile descriptam/H.264 BP/MP/HP descriptam/MJPEG descriptam

Temperatus operandi: -30℃-70℃

Operatio humiditas: 0~90% humiditas relativa, nulla condensatio

Virtus armorum: 20W(MAX)

Sal imbre gradu: Rp6 vel supra

Antistatic: contactus ±6KV, aer ±8KV

Virtus supple: DC12V/2A

Praesidium campester: IP66

Screen specifications: 10.1 inch summus definitione IPS screen

Magnitudo: 319*157*25.2mm

Features

Support binocular live corporis deprehensio

Sustinet faciem semita et nuditate hominum movens in fortis backlight ambitibus

Unicum faciei agnitio algorithmus, facies accurate agnoscit, facies agnitionis temporis minus est quam 0.5s

Temperantia mensurae moduli extensa subsidia ad mensurandum corporis temperaturam cominus et ad terrorem calidissimum providendum, et temperaturas datas interfaciei protocollo docking sustinet.

Ratio operandi LINUX utens, ratio stabilis est

H.265 forma videndi descriptam coniungitur cum NVR et aliis machinationibus repono per ONVIF protocollum et GB28181 protocollum.

Repositiones locales in TF card sustinet, continuum tabularum tabularum pro 1 anno ac videos pro 1 mense vel longiore (prout capacitati TF card libitum)

Medium cursus tempus inter defectis MTBF＞50000h

Sustinet 30,000+ faciem collationis bibliothecarum ac 80,000 recognitionum monumentorum

Protocolla interfaciei divites, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocolla sub Windows/Linux et alia suggesta

Temperatus operandi: -30℃-70℃

Support anti-tatione terror

Support video nubes intercom

Inaedificata QR code lectorem

Inaedificata IC card lectorem

Tortor ligula, initus audio et speaker output audio

Ferramenta interfaces divites (I/O, WG26, WG34, RJ45, ostium sensorem, ostium ostium, RS485)

10.1-inch IPS capacitivum tactus velamentum, nulla imago linunt vel mora

Lucrum automaticum et latis statera alba sinit verum colorem imaginis naturaliter restitui

In lumine nigro inaedificato gradu sensori dicato ad annotata video, accuratior cognitio humilis-lucis

3D sonum reductionis et penetrationis technologiae nebulae efficit magnas imagines sub humili lumine clarius et accuratius

Support ex parte interclusio video area

Statera alba automatic, in promptu manuum album statera

Suscipe maximam orci tempus occasum

Support mobile phone occasus magna

Support 2D sonitus reductionis et 3D sonitus reductionis

Sustinet memoria schedule tempus tempus ac modum onerationis occasus

Sustinet video splendorem, antithesin, colorem, satietatem et gamma commensurationem

Auxilio ponere maximam ipso nulla tempore

Sustinet faciem intelligentem expositio et facies amplificationem intelligentes occasus
